Start Heat pumps Air source heat pumps LIV series

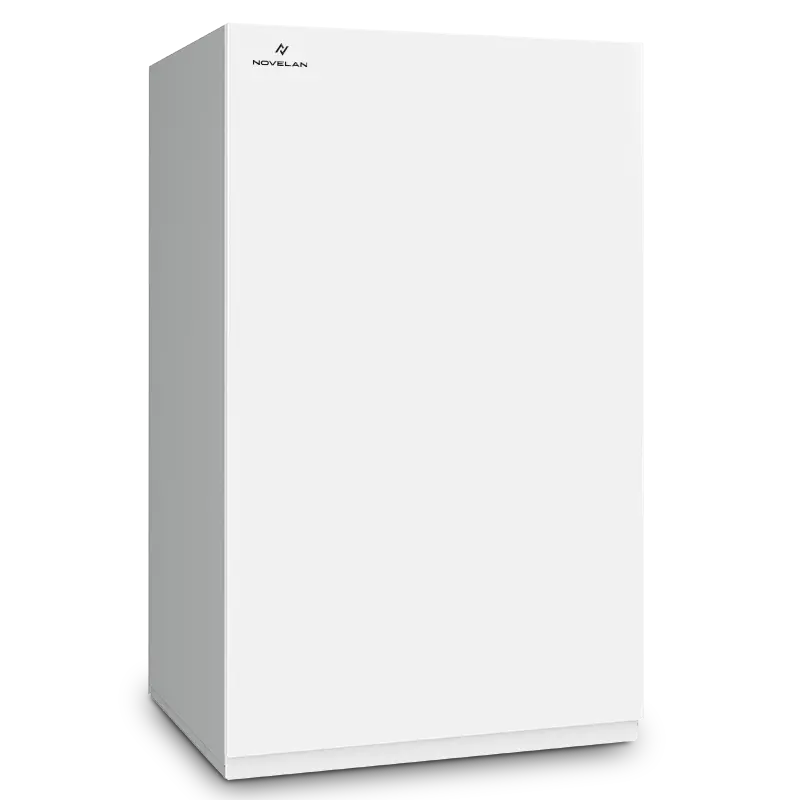

LIV series

Small device - huge performance. The performance-controlled air/water heat pumps of the LIV series for indoor installation are the perfect solution for almost any property - simple and efficient. The units offer a compact solution for heating, cooling and domestic hot water preparation.

Benefits

All in one system

Ideal for new buildings and renovations - many system components are already integrated in the compact module of the LIV units. Thus, the heat pumps offer a compact solution for heating, cooling and domestic hot water preparation.

New standards in acoustics

NOVELAN's LIV series air/water heat pumps set new standards in terms of acoustics. It can be optimally used even with sound-critical requirements as well as easily installed.

Innovative heating through inverter technology

Optimal adaptation to individual needs - thanks to modern inverter technology. The LIV units thus adapt optimally to the current needs of the house occupants and thus offer both installer and owner the highest possible planning reliability.

  • Item number 103772WR2141
  • Product group AIR/WATER
  • Heating capacity 1 3,82 (A2/W35 part. load) kW
  • Heating capacity 2 2,81 (A7/W35 part. load) kW
  • COP 1 4,19 (A2/W35 part. load)
  • COP 2 5,03 (A7/W35 part. load)
  • Max. flow temperature 60 °C
  • Indoor / Outdoor installation Indoor installation
  • Cooling Yes
  • Refrigerant R410A
  • Energy efficiency class space heating 35°C (combi heater) A+++
  • Energy efficiency class space heating 55°C (combi heater) A++
  • Energy efficiency class space heating 55°C (combined system) A++
  • Manual_LIV_kUK.pdf
  • Controller_WPR_20_21_Teil1_lEN.pdf
  • Controller_WPR_21_Teil2_kEN.pdf
  • Item number 103773WR2141
  • Product group AIR/WATER
  • Heating capacity 1 5,00 (A2/W35 part. load) kW
  • Heating capacity 2 5,29 (A7/W35 part. load) kW
  • COP 1 4,01 (A2/W35 part. load)
  • COP 2 4,71 (A7/W35 part. load)
  • Max. flow temperature 60 °C
  • Indoor / Outdoor installation Indoor installation
  • Cooling Yes
  • Refrigerant R410A
  • Energy efficiency class space heating 35°C (combi heater) A++
  • Energy efficiency class space heating 55°C (combi heater) A++
  • Energy efficiency class space heating 55°C (combined system) A++
  • Manual_LIV_kUK.pdf
  • Controller_WPR_20_21_Teil1_lEN.pdf
  • Controller_WPR_21_Teil2_kEN.pdf
  • Item number 103772HV941
  • Product group AIR/WATER
  • Heating capacity 1 3,82 (A2/W35 part. load) kW
  • Heating capacity 2 2,81 (A7/W35 part. load) kW
  • COP 1 4,19 (A2/W35 part. load)
  • COP 2 5,03 (A7/W35 part. load)
  • Max. flow temperature 60 °C
  • Indoor / Outdoor installation Indoor installation
  • Cooling Yes
  • Refrigerant R410A
  • Energy efficiency class space heating 35°C (combi heater) A+++
  • Energy efficiency class space heating 55°C (combi heater) A++
  • Energy efficiency class space heating 55°C (combined system) A++
  • Manual_LIV_kUK.pdf
  • Controller_WPR_20_21_Teil1_lEN.pdf
  • Controller_WPR_21_Teil2_kEN.pdf
  • Item number 103772HV1241
  • Product group AIR/WATER
  • Heating capacity 1 3,82 (A2/W35 part. load) kW
  • Heating capacity 2 2,81 (A7/W35 part. load) kW
  • COP 1 4,19 (A2/W35 part. load)
  • COP 2 5,03 (A7/W35 part. load)
  • Max. flow temperature 60 °C
  • Indoor / Outdoor installation Indoor installation
  • Cooling Yes
  • Refrigerant R410A
  • Energy efficiency class space heating 35°C (combi heater) A+++
  • Energy efficiency class space heating 55°C (combi heater) A++
  • Energy efficiency class space heating 55°C (combined system) A++
  • Manual_LIV_kUK.pdf
  • Controller_WPR_20_21_Teil1_lEN.pdf
  • Controller_WPR_21_Teil2_kEN.pdf
  • Item number 103773HV1241
  • Product group AIR/WATER
  • Heating capacity 1 5,00 (A2/W35 part. load) kW
  • Heating capacity 2 5,29 (A7/W35 part. load) kW
  • COP 1 4,01 (A2/W35 part. load)
  • COP 2 4,71 (A7/W35 part. load)
  • Max. flow temperature 60 °C
  • Indoor / Outdoor installation Indoor installation
  • Cooling Yes
  • Refrigerant R410A
  • Energy efficiency class space heating 35°C (combi heater) A++
  • Energy efficiency class space heating 55°C (combi heater) A++
  • Energy efficiency class space heating 55°C (combined system) A++
  • Manual_LIV_kUK.pdf
  • Controller_WPR_20_21_Teil1_lEN.pdf
  • Controller_WPR_21_Teil2_kEN.pdf
  • Item number 103772HSV941
  • Product group AIR/WATER
  • Heating capacity 1 3,82 (A2/W35 part. load) kW
  • Heating capacity 2 2,81 (A7/W35 part. load) kW
  • COP 1 4,19 (A2/W35 part. load)
  • COP 2 5,03 (A7/W35 part. load)
  • Max. flow temperature 60 °C
  • Indoor / Outdoor installation Indoor installation
  • Cooling Yes
  • Refrigerant R410A
  • Energy efficiency class space heating 55°C (combi heater) A++
  • Energy efficiency class hot water preparation (combi boiler) A
  • Energy efficiency class space heating 55°C (combined system) A++
  • Energy efficiency class hot water preparation (combined system) A
  • Manual_LIV_kUK.pdf
  • Controller_WPR_20_21_Teil1_lEN.pdf
  • Controller_WPR_21_Teil2_kEN.pdf
  • Item number 103772HSV12141
  • Product group AIR/WATER
  • Heating capacity 1 3,82 (A2/W35 part. load) kW
  • Heating capacity 2 2,81 (A7/W35 part. load) kW
  • COP 1 4,19 (A2/W35 part. load)
  • COP 2 5,03 (A7/W35 part. load)
  • Max. flow temperature 60 °C
  • Indoor / Outdoor installation Indoor installation
  • Cooling Yes
  • Refrigerant R410A
  • Energy efficiency class space heating 55°C (combi heater) A++
  • Energy efficiency class hot water preparation (combi boiler) A
  • Energy efficiency class space heating 55°C (combined system) A++
  • Energy efficiency class hot water preparation (combined system) A
  • Manual_LIV_kUK.pdf
  • Controller_WPR_20_21_Teil1_lEN.pdf
  • Controller_WPR_21_Teil2_kEN.pdf
  • Item number 103773HSV12141
  • Product group AIR/WATER
  • Heating capacity 1 5,00 (A2/W35 part. load) kW
  • Heating capacity 2 5,29 (A7/W35 part. load) kW
  • COP 1 4,01 (A2/W35 part. load)
  • COP 2 4,71 (A7/W35 part. load)
  • Max. flow temperature 65 °C
  • Indoor / Outdoor installation Indoor installation
  • Cooling No
  • Refrigerant R410A
  • Energy efficiency class space heating 55°C (combi heater) A++
  • Energy efficiency class hot water preparation (combi boiler) A
  • Energy efficiency class space heating 55°C (combined system) A++
  • Energy efficiency class hot water preparation (combined system) A
  • Manual_LIV_kUK.pdf
  • Controller_WPR_20_21_Teil1_lEN.pdf
  • Controller_WPR_21_Teil2_kEN.pdf
